HY series

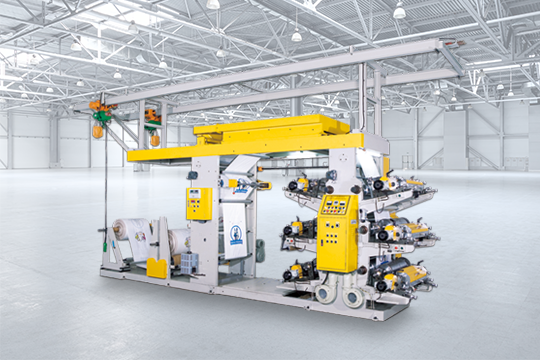

Heavy Duty Type Flexo Printing Machine

Structure: Reinforced structure for jumbo roll, heavy duty woven sack and paper roll…etc.
Transmission Method: By bull gear system to get excellent printing performance.
Printing Flexibility: Front & reverse printing.
Tension Control: European auto tension control & EPC system for easy operation with accurate color registration.
Ink Rollers Rotating Method: Each printing station works with individually ink rotating motor for keeping the ink rotating when machine stop, and reduce the loading of motor.
Drying Equipment: High capacity arch dryer channel with air blower for high speed printing.
Winding Unit: Surface type rewind with winding diameter maximum up to∮1100mm.
Equipped with the chain hoist for easy loading and unloading the materials.

Item	Content
Number of Color	4 / 6
Machine Speed	100 m/min
Printing Speed	20 – 90 m/min *Printing speed depends on material, ink and printing condition.
Material Width	600 – 1500mm
Printing Width	500 – 1400mm
Printing Length	300 - 1000 mm
Standard Devices	- Auto Tension Control (European Brand) - E.P.C. (European Brand) - Surface Type Rewind∮1100mm - Air Shaft - Chain Hoist
Optional Devices	- Pneumatic Ink Circulating Pump with Tank - Ceramic Anilox Roller

Special for printing the PP/PE woven sack, craft paper, and various kinds of heavy duty packaging materials.
