Warehouse stocking
Pallets loading, unloading & transport
Goods movement
Molds and spare parts exchange
Safety: Injury prevention
Working friendly: Easy movement, reduce fatigue
Saving manpower: working independently
Increase productivity: Easily load, unload and transport, working efficiently.
| Model | LHT-400-12 | LHT-400-15 | LHT-400-17 | LHT-400-12-B | LHT-400-12-B | LHT-400-12-B |
|---|---|---|---|---|---|---|
| Type | Foot pump | Battery powered - DC drive - Battery 12V-70AH - Charger 12A-AC-110V |
||||
| Load capacity | 400 kgs | 400 kgs | ||||

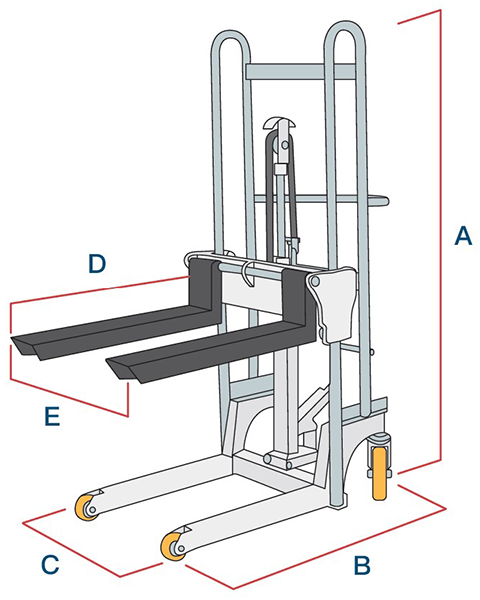

| Overall length (with folk) - (B) |
1060mm | 1210mm | 1160mm | 1160mm | ||
| Overall length (without folk) |
900mm | 1050mm | 1000mm | 1000mm | ||
| Overall width | 595mm | 595mm | ||||
| Overall height(A) | 1440mm | 1745mm | 1930mm | 1440mm | 1745mm | 1930mm |
| Base length | 580mm | 580mm | ||||
| Base inner length | 390mm | 390mm | ||||
| Base outer length (C) | 490mm | 490mm | ||||
| Base height | 80mm | 80mm | ||||
| Base width (front wheel not included) |
40mm | 40mm | ||||
| Fork dimension | 110W × 650L × 60H | 110W × 650L × 60H | ||||
| Fork gap | 240 - 555mm | 240 - 555mm | ||||
| Fork min. height | 90mm | 90mm | ||||
| Fork max. height | 1200mm | 1500mm | 1700mm | 1200mm | 1500mm | 1700mm |
| Rear wheel | 6" × 1540 PU wheel + two wheel brake | 6" × 1540 PU wheel + two wheel brake | ||||
| Front wheel | 3" × 7534 PU wheel × 2 | 3" × 7534 PU wheel × 2 | ||||
| Machine weight | 84 kgs | 90 kgs | 93 kgs | 129 kgs | 135 kgs | 138 kgs |
| Optional devices | Platform | Platform, Cable switch | ||||
