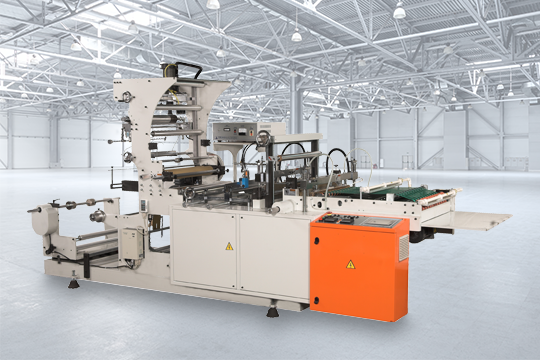

IPH series

Side Sealing & Cutting Machine

Features

High positioning, sealing and cutting accuracy ensured with a high quality design.
Auto-stop if material runs out.
High accuracy printing point tracing provided by precision photocell sensor.
Auto-stop if printing mark out of position.
Imported high speed conveyor belt & electronic parts for long service life.
Convenient to change for various bag types.
Ruggedly constructed for maximum stability during high speed production.
Touch screen for easy setting.
Custom design is available.
Multiple functions for different bag type.

Applications

This machine can work with PP, OPP, CPP, LDPE, HDPE material.

The machine can be customized design to make the following bags:
Poly mailer bags, Plastic carrier Bags, Duty free bag, Multi-seal PE-duty free bag, Banking bag with QR code and serial number, Handle hole carrier bag, 3D shaped bags, drawstring bag and products related poly currier bags, Diaper bags, Sanitary bags, Toilet paper bags, Frozen chicken bag, Fruit or vegetable bag, Garment bag, book cover, hanger bag, hanging bag

Model	IPH-262S	IPH-263S	IPH-323S	IPH-403S
Available Material	PP, OPP, CPP, LDPE, HDPE	PP, OPP, CPP, LDPE, HDPE	PP, OPP, CPP, LDPE, HDPE	PP, OPP, CPP, LDPE, HDPE
Width of Bag	20 – 150 mm	50 – 600mm	50 – 600mm	50 – 600mm
Legnth of Bag	Max. 580mm	Max. 600mm	Max. 760mm	Max. 960mm
Speed pcs/min ^①	Max. 250	Max. 200	Max. 200	Max. 160
Thickness ^②	0.015 – 0.08mm	0.015 – 0.08mm	0.015 – 0.08mm	0.015 – 0.08mm
Optional Equiment: - Round hole punching device - Ultrosonic longitudinal sealing device - Auto slider insertion device - Hanger puncher - Inline folding device - Auto-hanger insert device - Bag dividing device - Zipper attachment - EPC (Edge position control) - Perforation device for easy tear - Pocket insert device - Auto-collecting device - 2 servo for free tension device - Euro hole puncher - Pre-sealing device - Chicken bag device (round bottom) - Hot stamping device

^① Depends on material, bag type and size.
^② Depends on material type.
