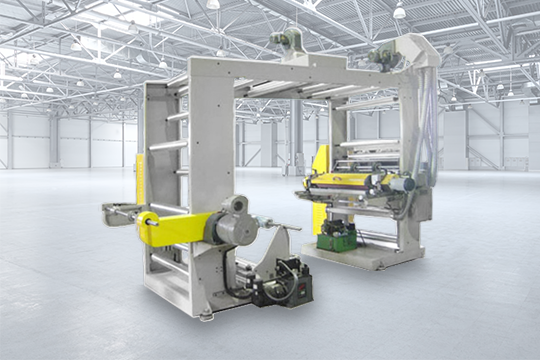

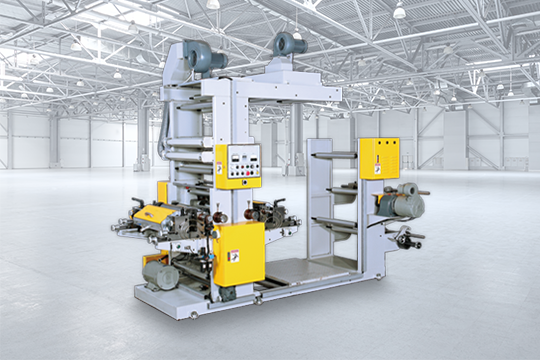

LL series (Economic Model)

Stack Type Flexo Printing Machine

Economic model for printing solution.
Transmission Method: By bull gear system to get excellent printing performance.
Printing Flexibility: Front & reverse printing.
Tension Control: Magnetic powder brake for unwind & torque motor control for rewind.
Ink Rollers Rotating Method: One rotating motor for all printing stations, transmission by straight gear.
Drying Equipment: Blower drying system match to the mechanical speed.
Unwind & Rewind: Doble unwind and rewind station as optional to have double output for small film sizes.

Item	Content
Number of Color	1 / 2 / 4 / 6
Machine Speed	80 m/min
Printing Speed	20 – 70 m/min *Printing speed depends on material, ink and printing condition.
Material Width	600 – 1200mm
Printing Width	500 – 1100mm
Printing Length	300 - 1000 mm
Optional Devices	- Pneumatic Ink Circulating Pump with Tank - Double Unwind & Rewind - Rewind Pressing Roller - Air Shaft

HDPE, LDPE & PP plastic film, Biodegradable film…etc.
