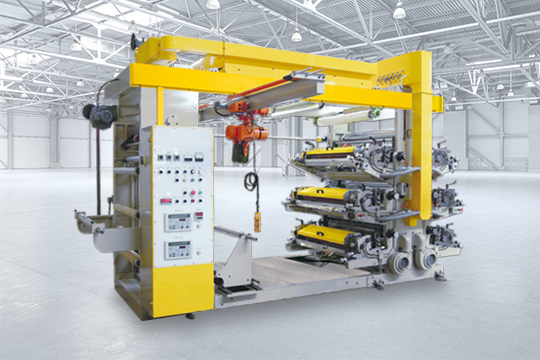

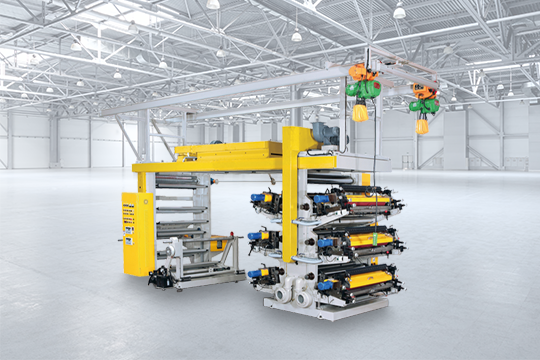

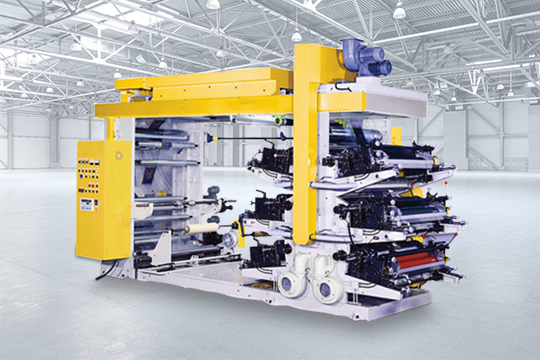

FSP series

Stack Type Flexo Printing Machine

Transmission Method: By bull gear system to get excellent printing performance.
Printing Flexibility: Front & reverse printing.
Tension Control: European auto tension control & EPC system for easy operation with accurate color registration.
Ink Rollers Rotating Method: Each printing station works with individually ink rotating motor for keeping the ink rotating when machine stop, and reduce the loading of motor.
Drying Equipment: High capacity arch dryer channel with air blower for high speed printing.
Unwind & Rewind: Doble unwind and rewind station as optional to have double output for the small film sizes.

Item	Content
Number of Color	2 / 4 / 6
Machine Speed	100 m/min
Printing Speed	20 – 90 m/min *Printing speed depends on material, ink and printing condition.
Material Width	800 – 1500mm
Printing Width	700 – 1400mm
Printing Length	300 – 1000 mm
Standard Devices	- Auto Tension Control (European Brand) - E.P.C. (European Brand)
Optional Devices	- Pneumatic Ink Circulating Pump with Tank - Ceramic Anilox Roller - Double Unwind & Rewind - Rewind Pressing Roller - Air Shaft - Chain Hoist

HDPE, LDPE & PP plastic film, Biodegradable film, Paper, Non-Woven fabric…etc.
