Corona Surface Treater

Application

The corona surface treater is working on the film extruders and converting equipment such as printing, coating, lamination…etc., which is suitable for treating the plastic material HDPE, LD/LLDPE, PP, PVC, PET, ABS.

Features

Corona surface treater for blown film
Speed: 0 – 150 m/min.
Dynes: 38 – 44 Dynes (Depends on the film application).

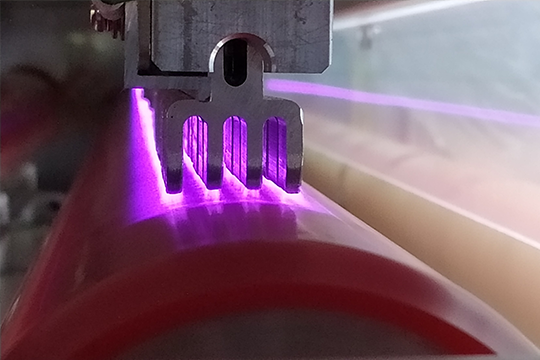

Treatment: One side / Two sides, with 25mm segment electrode.
Thickness of film: 0.008 – 0.200mm.
Capacity of corona surface treater: Depends on working line speed, raw material & slip agent.

Specifications of Control Panel

Description	800S	1000S	1200S	2KT	3KT-T
Max. Consumption (Kw, HP)	1.0 KVA 1.3 HP	1.2 KVA 1.6 HP	1.5 KVA 2.0 HP	2.5 KVA 3.4 HP	3.5 KVA 4.7 HP
Max. Output power & Amperage	0.8 KW 3A	1.0 KW 4A	1.5 KW 5A	2.0 KW 7A	3.0 KW 6A
Max. Discharge Capacity One Side Treatment	1200mm	1500mm	1600mm	1800mm	2000mm
Max. Discharge Capacity Two Sides Treatment	1000mm × 2	1200mm × 2	1500mm × 2	1700mm × 2	2000mm × 2
Control Panel Dimension(mm)	600 × 180 × 300	600 × 180 × 300	600 × 180 × 300	600 × 180 × 300	700 × 220 × 430
Net Weight (kg)	27	32	35	37	37

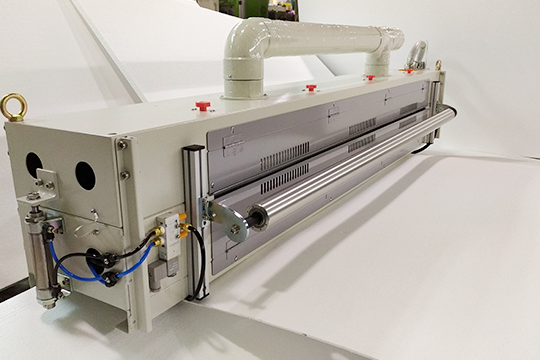

Electrod Specifications

Electric Discharging Bar (mm)	400mm	600mm	800mm	1000mm	1200mm
Silicone Roller (mm)	2.5” × 445	2.5” × 645	2.5” × 845	2.5” × 1045	2.5” × 1245
Electrode Dimension (mm)	970 × 240 × 280	1170 × 240 × 320	1370 × 240 × 320	1570 × 240 × 320	1770 × 240 × 320
Net Weight (kg)	30	34	38	44	48

Electric Discharging Bar (mm)	1400mm	1600mm	1800mm	2000mm	2200mm
Silicone Roller (mm)	2.5” × 1445	2.5” × 1645	2.5” × 1845	2.5” × 2045	2.5” × 2245
Electrode Dimension (mm)	2070 × 240 × 320	2170 × 240 × 320	2370 × 240 × 320	2570 × 240 × 320	2770 × 240 × 320
Net Weight (kg)	58	63	68	73	78
