IP-CD40 series

Embossing & Gusseting Machine

  • Shaftless unwind for easy loading.
  • Variable main speed. Maximum speed 60 meters per minute provides high capacity.
  • Guaranteed gusset quality without being affected by roller pressure variation. Adjustable gusset depth range: 25-75mm.
  • The machine is equipped with an emergency stop wire. If an abnormal situation occurs, the operator can quickly pull the wire to immediately stop the machine.

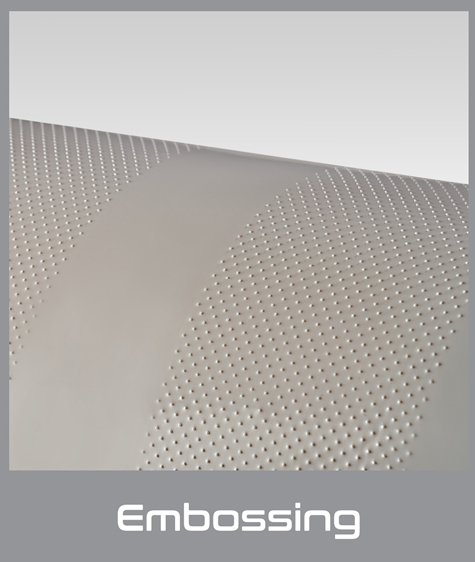

  • Superior knurling effect: The specially designed machine structure combined with an outstanding control system assures superior embossing operations.
  • The unwinder is equipped with an edge position controller.

Applications

Packaging for resins, fertilizers, chemical products.

Model IP-CD40
Machine Speed 10-60M/min, depending on material
Material Widith Max. 750mm, Min. 450mm
Material Thickness 0.1-0.3 mm
Gusseting Depth 25mm-75mm
Unwind Diameter 1000 mm Max
Rewind Diameter 1000 mm Max
Power Required 6KW
Machine Dimensions 580 x 240 x 330 cm
Packing Dimensions 275 x 230 x 200 cm
325 x 230 x 250 cm
235 x 120 x 90 cm
Machine Weight 3450 kg
Packing Weight 5000 kg

Specification are subject to change without notice.
