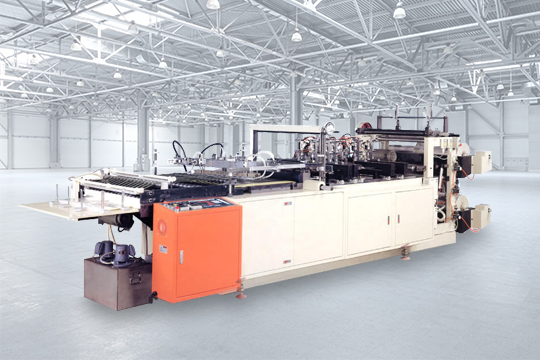

Automatic Flower Shape Bag Making Machine (Flower Sleeves)

Plastic Bag Making Machine
Automatic Flower Shape Bag Making Machine (Flower Sleeves)
Automatic Flower Shape Bag Making Machine (Flower Sleeves)
Automatic Flower Shape Bag Making Machine (Flower Sleeves)
Automatic Flower Shape Bag Making Machine (Flower Sleeves)
IPH-SC-RW series

Automatic Flower Shape Bag Making Machine (Flower Sleeves)

  • Fully automatic stacking conveyor, no need for workers to collect from conveyor unit.
  • Stack held together with automatic hot needles.
  • High accuracy outfeed length controlled by AC servo motor.
  • Printing controlled by precision photocell for high accuracy.
  • Two material rolls at unwinder work simultaneously.

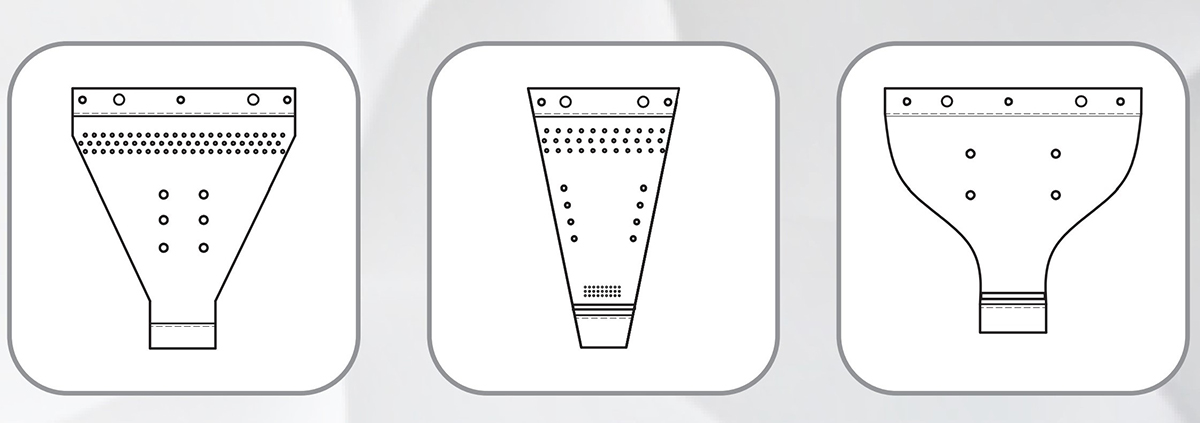

  • Quick to change bag shape and size.
  • Clean, elegant and secure sealing.
  • High efficiency, long term operations.
  • Easy to operate by one person.

Applitations

Flower, candy, grape, sandwich, fresh salad, fresh vegetable, plants, umbrella, necktie sleeve bags.

Model IPH-600SC-RW IPH-800SC-RW IPH-1000SC-RW
Material BOPP, CPP BOPP, CPP BOPP, CPP

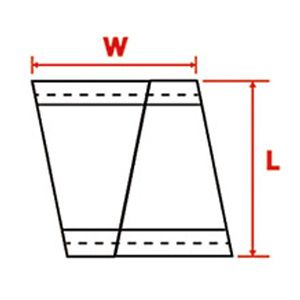

Width of Bag 250 – 550mm 300 – 650mm 350 – 750mm
Length of Bag 380 – 550mm 450 – 650mm 450 – 750mm
Speed ① 120 Cycle x (2) 120 Cycle x (2) 120 Cycle x (2)
Thickness ② 0.015 – 0.08 mm 0.015 – 0.08 mm 0.015 – 0.08 mm
Unwind Diameter 500 mm 500 mm 500 mm
Optional Equiment:
- Round hole punch
- Multi hole punch
- Edge positioning controller (EPC)
- Up & down print register device
- Wineglass shaped heat sealing mold
- Bottom sealing device
- S-shape sealing mold
- Label attach device
- Adhesive tape
- Unwind tension control by powder brake

① Depends on bag type size, material type and thickness.
② Depends on material type.
