Two Stage Force Hopper Feeding Plastic Recycling Machine

Plastic Recycling Machine
Two Stage Force Hopper Feeding Plastic Recycling Machine
Two Stage Force Hopper Feeding Plastic Recycling Machine
ReECO2 Series

Two Stage Force Hopper Feeding Plastic Recycling Machine

  • Suitable for washed post-consumer rigid and soft material.
  • Economical choice.
  • Well degassing.
  • More clean material with two stages filters.
  • Lower power consumption.

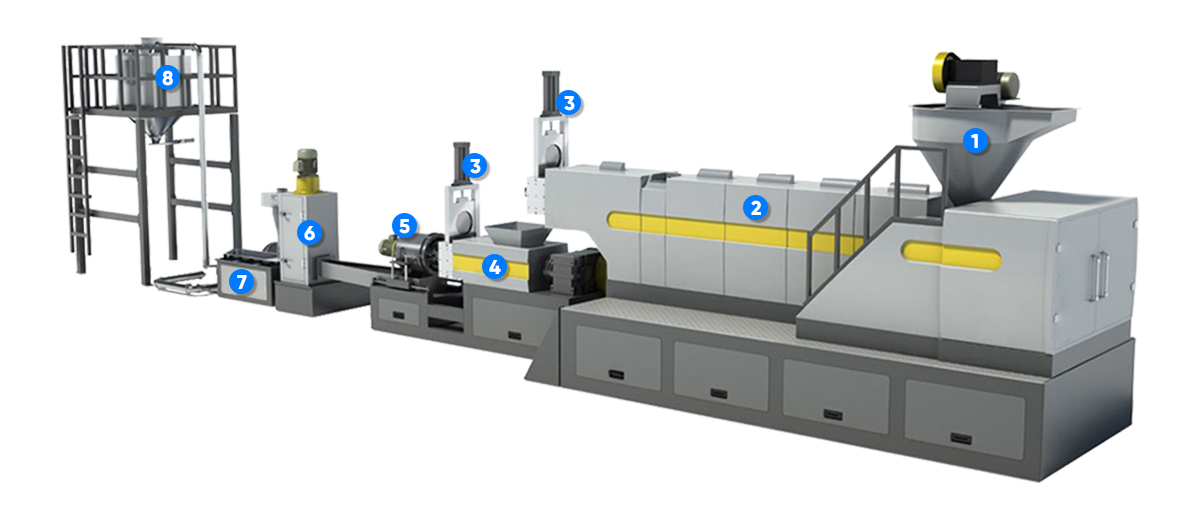

Details

  1. Hopper Feeding System
  2. Main Extruder
  3. Filtration System
  4. Sub-Extruder
  5. Pelletizing System
  6. Centrifugal Dryer
  7. Vibration System
  8. Storage Tank
Details


Features

Economical Choice

A valuable selection for clean materials, without preheating section for feeding device, this reduces the power consumption. The axle is made of special steel with heat treatment. More tenacity and allows the materials to be fed sequence stably and is also anti-bridging.

Unrivaled Degassing

Up to triple optional degassing zones equipped with vacuum pumps. Maximize the degassing efficiency.

Exhaust-Free Construct

The unique development of a two-stage extruder. A completely enclosed flow design, which prevents the molten polymer from releasing smoke.

Options

The pelletizing system can equip with hot die face cutting water cooling system or Strand (Spaghetti) pelletizing system depends on the material property and material Melt Index.

Die Face Cutting Water Cooling System.
Die Face Cutting Water Cooling System.
Strand Pelleting System.
Strand Pelleting System.

Applicable Materials

PE, PP, PS, ABS, HIPS, PET and more.
Recommend for post-industrial or post-consumer washed plastic rigid materials, including crushed bottles, crushed industrial waste and injection materials.

Recycling Material

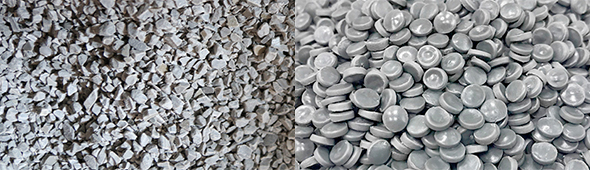

Industrial Waste
Industrial Waste

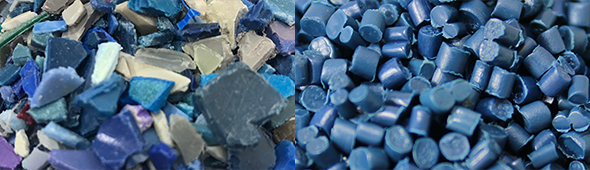

Rigid Waste
Rigid Waste

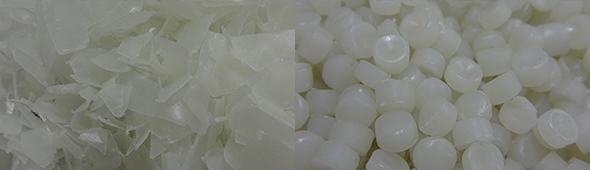

Washed Bottles
Washed Bottles

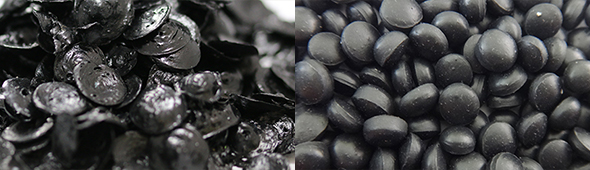

Washed Green House Film
Washed Green House Film

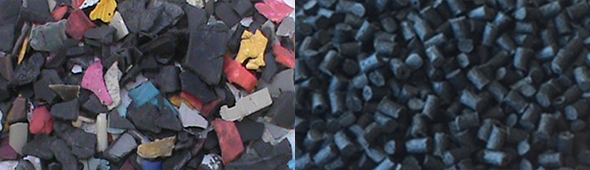

Washed Plastic Vehicle Parts
Washed Plastic Vehicle Parts

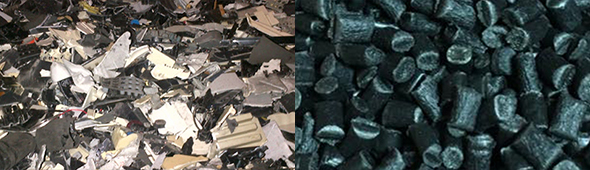

Washed WEEE Waste Electrical Equipment
Washed WEEE Waste Electrical Equipment

ReECO2 Series

Model RE2-100 RE2-125 RE2-150 RE2-175
Main Extruder Screw ∮100mm ∮125mm ∮150mm ∮175mm
Drive 125 HP 150 HP 200 HP 350 HP
Sub Extruder Screw ∮115mm ∮135mm ∮165mm ∮185mm
Drive 50 HP 60 HP 75 HP 100 HP
Output (kg/hr) 200-300 300-450 450-600 700-900
Optional Devices:
Belt conveyor, Plastic crusher, Horizontal mixer tank, Screw conveyor, Masterbatch feeder, Vacuum pump, Doble vented barrel, Dual piston filter, Cooling tower with tank for water circulation.
