Two Stage Force Side Feeding Plastic Recycling Machine
Two Stage Force Side Feeding Plastic Recycling Machine
ReFORCE2 Series

Two Stage Force Side Feeding Plastic Recycling Machine

  • Suitable for washed post-consumer rigid material.
  • Stable feeding, increase the output.
  • Well degassing.
  • More clean material with two stages filters.

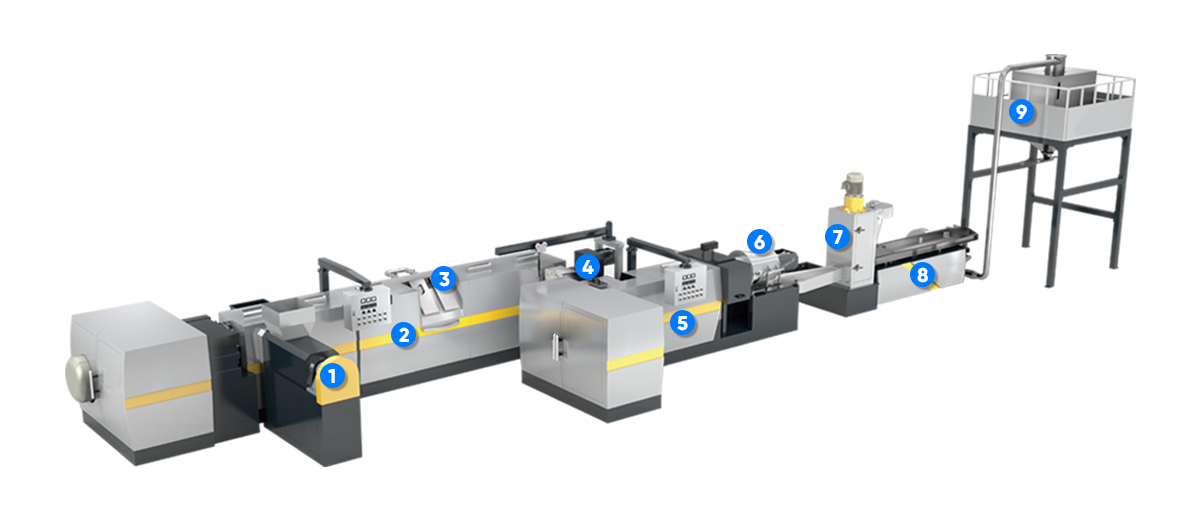

Details

  1. Force Feeding System
  2. Main Extruder
  3. Degassing Section
  4. Filtration System
  5. Sub-Extruder
  6. Pelletizing System
  7. Centrifugal Dryer
  8. Vibration System
  9. Storage Tank
Details


Features

Increasing Feeding

The force side feeding device creates a very stable feeding flow. With stable feeding, the main screw is always fully loaded with materials, which ensures the highest output performance. Increase the output capacity up to 50%.

Exhaust-Free Construct

The unique development of a two-stage extruder. A completely enclosed flow design, which prevents the molten polymer from releasing smoke.

Unrivaled Degassing

Up to triple optional degassing zones equipped with vacuum pumps for two-stage extruder. Maximize the degassing efficiency.

More Labor-saving

The feeding control system monitors the ampere and controls the feeding speed automatically. Only 1~2 operators are required for an entire plant.

Options

The pelletizing system can equip with hot die face cutting water cooling system or Strand (Spaghetti) pelletizing system depends on the material property and material Melt Index.

Die Face Cutting Water Cooling System.
Die Face Cutting Water Cooling System.
Strand Pelleting System.
Strand Pelleting System.

Applicable Materials

PE, PP, PS, ABS, HIPS, PET and more.
Recommend mainly for post-industrial or post-consumer washed plastic rigid materials, including crushed bottles, crushed industrial waste and injection materials.

Recycling Material

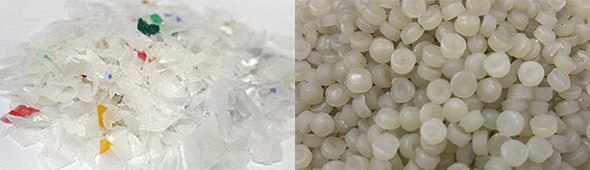

Washed HDPE Milk Bottle
Washed HDPE Milk Bottle

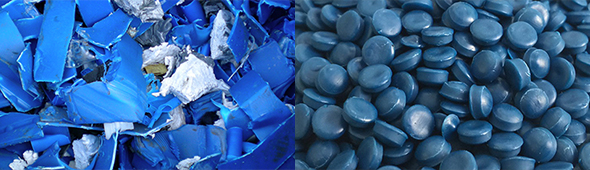

Washed Chemical Drums
Washed Chemical Drums

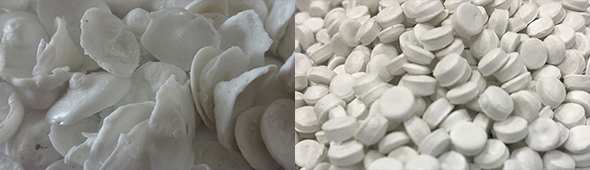

Washed Films
Washed Films

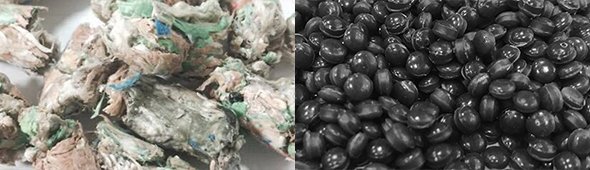

Washed Plastic Raffia
Washed Plastic Raffia

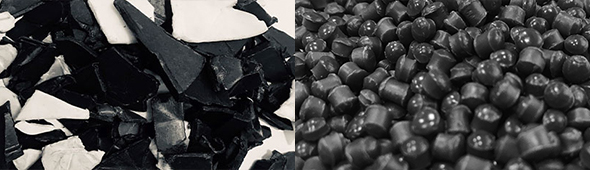

Washed WEEE Waste Electrical Equipment
Washed WEEE Waste Electrical Equipment

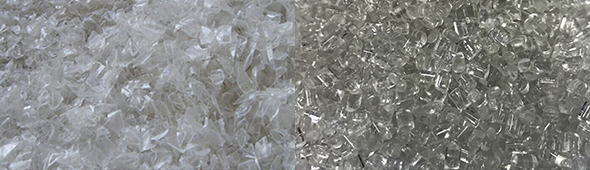

Washed PET Drink Bottle
Washed PET Drink Bottle

ReFORCE 2 Series

Model RF2-100 RF2-125 RF2-135 RF2-150 RF2-175
Main Extruder Screw ∮100mm ∮125mm ∮135mm ∮150mm ∮175mm
Drive 125 HP 175 HP 200 HP 250 HP 300 HP
Sub Extruder Screw ∮125mm ∮155mm ∮155mm ∮165mm ∮200mm
Drive 40 HP 75 HP 100 HP 100 HP 150 HP
Output (kg/hr) 300-400 450-600 650-850 700-800 900-1100
Optional Devices:
Horizontal mixer tank, Screw conveyor, Masterbatch feeder, Vacuum pump, Doble vented barrel, Dual piston filter, Cooling tower with tank for water circulation.
