IPH & IPH-Q series

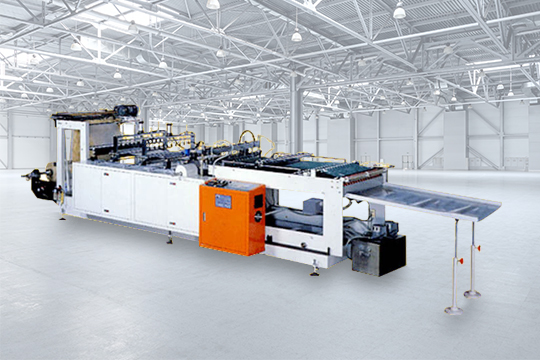

Bottom Sealing Machine

Features

Poly sealing knives make the sealed foundation of the bag firm and pretty.
Two lines sorting and auto feeding.
Manufactures the thick poly-bags.
Highly customized polythene bottom sealing and cutting machine manufacturing capacity.

Applications

Application for thick polythene bags, packaging salt, material, rice, sugar, screws, pesticides, refrigerated, fruit and vegetable, heavy shopping bag.

Bottom Sealing (Thickness < 100 micron)

Model	IPH-264	IPH-326	IPH-406
Material	HDPE, LDPE	HDPE, LDPE	HDPE, LDPE
Cutting Width	26”	32”	40”
Cutting Length	4” – 40”	6” – 60”	6 – 60”
PC / Min	40 – 130	25 - 100	25 - 100
Converting Thickness(mm)	0.015 – 0.100	0.015 – 0.100	0.015 – 0.100
Optional Equipment - 45˚ seal for standing bag. - Free tension device for strong seal.

*Specifications are subject to change without notice.

Bottom Sealing Heavy Duty Bags (Thickness > 100 micron)

Model	IPH-263Q	IPH-326Q	IPH-406Q
Material	HDPE, LDPE	HDPE, LDPE	HDPE, LDPE
Cutting Width	26”	32”	40”
Cutting Length	3” – 30”	3” – 30”	3” – 30”
PC / Min	20 – 70	20 - 50	20 - 50
Converting Thickness(mm)	0.080 – 0.400	0.080 – 0.400	0.080 – 0.400
Optional Equipment - 45˚ seal for standing bag. - Free tension device for strong seal.

*Specification are subject to change without notice.
