Warehouse stocking
Goods movement
Molds and heavy spare parts exchange

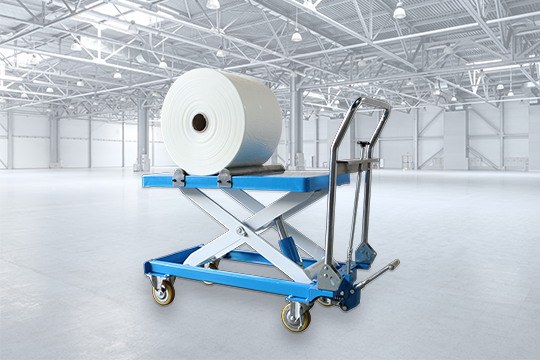

Film rolls loading, unloading & transport
Safety : Injury prevention
Working friendly: Easy movement, reduce fatigue
Saving manpower: working independently
Increase productivity: Easily load, unload and transport , working efficiently.

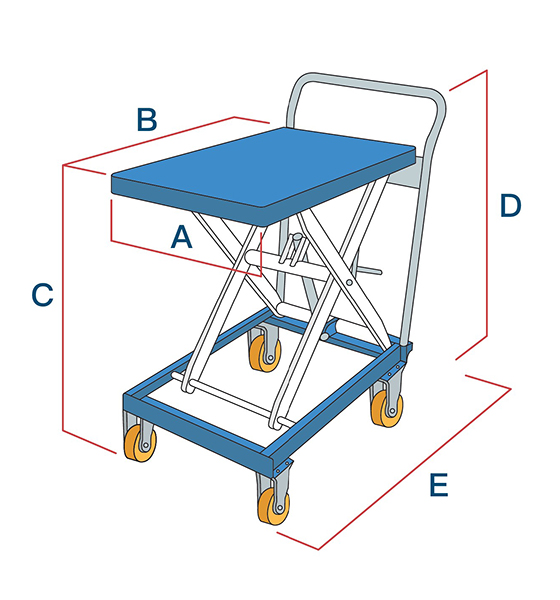

| Model | LPC-150S | LPC-300S | LPC-500S | LPC-600S | LPC-800S | LPC-1000S |
|---|---|---|---|---|---|---|
| Type | Foot pump | |||||
| Capacity (Max.) | 150KG | 300KG | 500KG | 600KG | 800KG | 1000KG |
| Table size A × B | 450 × 700 | 500 × 800 | 500 × 900 | 550 × 1000 | 550 × 1000 | 550 × 1000 |
| Min. height | 220 | 280 | 310 | 330 | 365 | 365 |
| Max. height C | 760 | 880 | 950 | 990 | 1010 | 365 |
| Handle height D | 920 | 970 | 970 | 970 | 1020 | 1020 |
| Arm | single | |||||
| Total Length E | 860 | 970 | 1070 | 1230 | 1230 | 1230 |
Remark: Battery powered available for 300 / 500 / 800 / 1000 kgs

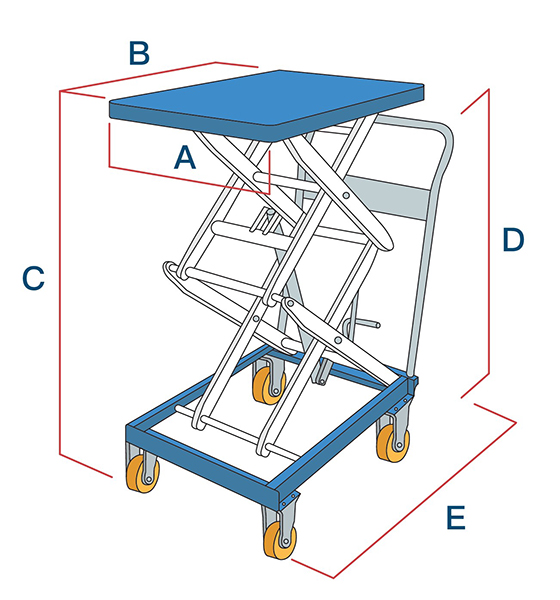

| Model | LPC-300D | LPC-350D | LPC-500D |
|---|---|---|---|
| Type | Foot pump | ||
| Capacity (Max.) | 300KG | 350KG | 500KG |
| Table size A × B | 500 × 800 | 500 × 900 | 550 × 700 |
| Min. height | 355 | 355 | 355 |
| Max. height C | 1300 | 1400 | 1100 |
| Handle height D | 970 | 970 | 970 |
| Arm | double | ||
| Total Length E | 970 | 1070 | 870 |
Remark: Battery powered available for 350 / 500 kgs
